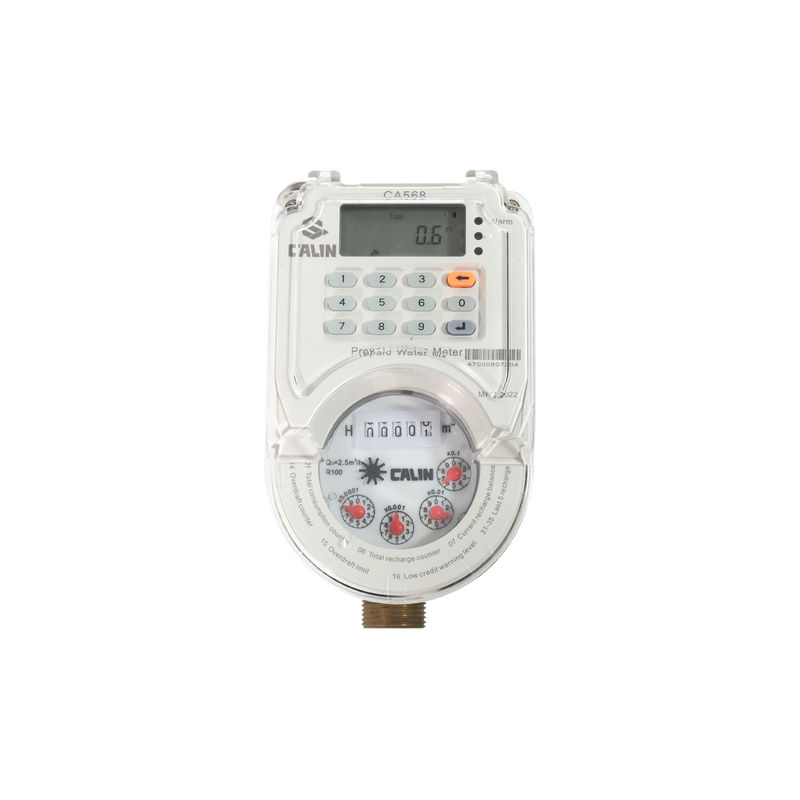

Ethiopia Multi-Jet STS Compliant Prepayment Water Meter with IR Keypad LCD Display

Ethiopia Multi-Jet STS Compliant Prepayment Water Meter with IR Keypad LCD Display

  • Ethiopia Multi-Jet STS Compliant Prepayment Water Meter with IR Keypad LCD Display
  • Ethiopia Multi-Jet STS Compliant Prepayment Water Meter with IR Keypad LCD Display
  • Ethiopia Multi-Jet STS Compliant Prepayment Water Meter with IR Keypad LCD Display
  • Ethiopia Multi-Jet STS Compliant Prepayment Water Meter with IR Keypad LCD Display
Ethiopia Multi-Jet STS Compliant Prepayment Water Meter with IR Keypad LCD Display
Datos del producto:
Lugar de origen: China
Nombre de la marca: Calin
Certificación: CE/SABS/IEC
Número de modelo: CA568K
Pago y Envío Términos:
Cantidad de orden mínima: Negociación
Precio: Negotiation
Detalles de empaquetado: caja de cartón
Tiempo de entrega: 30 DÍAS
Condiciones de pago: unión occidental, Paypal, T/T, L/C
Capacidad de la fuente: 10.000 PC por mes
Contacto
Descripción detallada del producto
Nombre del producto: Contador del agua pagado por adelantado kepay del STS IR de la exhibición del LCD estándar: STS, 2004/22/EC (MEDIADOS DE), OIML R49
Peso: g 1300 Mostrar: LCD/contrario
Precisión: Clase B Protección: IP67
Alta luz:

remote water meter

,

electronic water meter

Ethiopia Multi-Jet STS Compliant Prepayment Water Meter with IR Keypad LCD Display

The CA568 series is an STS (Standard Transfer Specification) compliant, electronic valve controlled, water meter recharging via a built-on 4x3 keypad. With CA568-K series you are assured of continuously good metrology and revenue protection at the same time.The electronic part of the meter is potted and is sealed away from the water, which makes the meter water resistant and adapting to humid and tropical environments.



The meter operates with STS standard compliant 20 digits' code to handle credit . Customers purchase credit at vending points to get a 20 digits code. They enter this code via IR keypad to the meter and complete the recharge to buy the water!



A handy remote keypad is offered to enter recharge token codes through a wireless infrared port, which allows the meter to be topped up and recharge remotely when being installed away from customers'reach as well as any tamper and damage.

With our broad range of prepaid vending solutions, a utility or service provider can manage CAW series water meter along with STS prepaid electricity meters in one vending system.



Calinmeter has over 10 years experience in STS prepayment metering,our company is original meter manufacturer and solution provider, Ethiopia is our strategic long term market,we have already provided there before I am surely that calin is the right one supplier you are not missing!



Features

a) Wet dial / dry register construction on request

b) Magnetic field protection

c) Can be managed and vended along with prepayment electricity meter

d) Tamper and fraud proof

e) Low credit warning

f) Over 10 years’ data retention in absence of power

g) Duo display of counter register and LCD

h) Flexible tariff and debt collection setting



 Key benefits

1) Quick and easy to install for both new reticulation and retrofittings

2) Easy vending for both utility and consumers

3) Multi-rate and usage record on Time of Use (TOU) basis

4) Flexible setting for free basic water, emergency credit, low credit warning, debt collection

5) Can be extended for AMR AMI smart metering applications, meter readouts

6) Reduced operational and inventory cost





Specifications:







Nominal size



Dn



mm

                in-line

15

20

25

Maximum flow rate

Q4

m3/h

3.125

5.0

7.875

Ratio “R”

    Q3/Q1



80

80

80

Permanent l flow rate

Q33





m3/h

2.5

4.0

6.3

Transitional flow rate

Q22

0.05

0.08

0.126

Minimum flow rate

Q11

0.031

0.05

0.0787

Minimum reading



m3

0.0005

Maximum reading

99999



Maximum Permission Error (MPE)

Q1≦Q≦,Q2    MPE =+ 5%           Q2≦Q≦Q4,    MPE= + 2% (For hot water metering, MPE=+ 3%)



Dimensions and diagram



Nominal size

Length

Width

Height

Thread

mm

D

15

165

101

124

G3/4B

20

195

101

124

G1B

25

225

101

124

G5/4B
