Shenzhen Calinmeter Co,.LTD
Shenzhen Calinmeter Co,.LTD

el único dueño legal de la marca de CALIN y el único fabricante de metros de utilidad de la serie de Calin.

Calinmeter se reserva la derecha de perseguir cualquier remedio legal de cualquier persona o de la entidad que demanden como el grupo o la afiliación de Calin o distribuyan productos del metro de Calin sin autorizaciones apropiadas.

Inicio ProductosContadores del agua pagados por adelantado

Los metros pagados por adelantado válvula conducidos batería GPRS impermeable del agua y de la electricidad transmiten

Los metros pagados por adelantado válvula conducidos batería GPRS impermeable del agua y de la electricidad transmiten

  • Los metros pagados por adelantado válvula conducidos batería GPRS impermeable del agua y de la electricidad transmiten
  • Los metros pagados por adelantado válvula conducidos batería GPRS impermeable del agua y de la electricidad transmiten
Los metros pagados por adelantado válvula conducidos batería GPRS impermeable del agua y de la electricidad transmiten
Datos del producto:
Lugar de origen: China
Nombre de la marca: Calin
Certificación: CE/SABS/IEC
Número de modelo: CA568-G
Pago y Envío Términos:
Cantidad de orden mínima: Negociación
Precio: Negotiation
Detalles de empaquetado: caja de cartón
Tiempo de entrega: 30 DÍAS
Condiciones de pago: unión occidental, Paypal, T/T, L/C
Capacidad de la fuente: 10.000 PC por mes
Contacto
Descripción detallada del producto
Nombre del producto: Contador del agua del pago adelantado de la lectura remota de GPRS estándar: 2004/22/EC (MEDIADOS DE), OIML R49
Peso: g 1300 Mostrar: LCD/contrario
Precisión: Clase B Comunicación: GPRS
Alta luz:

contador del agua remoto

,

contador del agua del pago adelantado

Battery Driven Valve Waterproof GPRS Transmit Prepaid Water meter in Indonesia

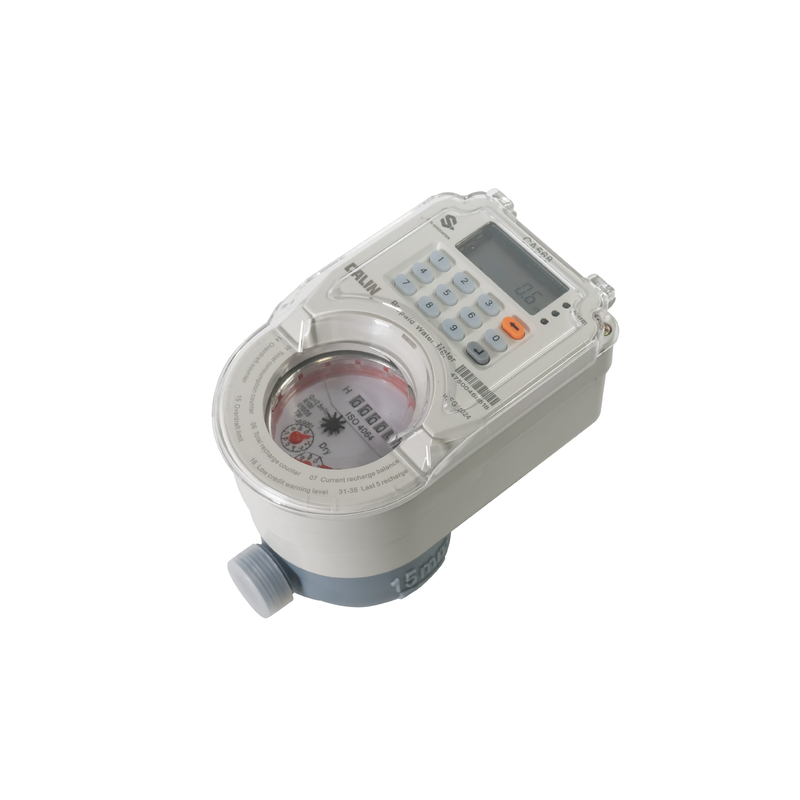

The CA568-G  is a multi-jet wet / dry type, GPRS remote reading and prepaid water meter.  The meter works with a low power  bistable latched valve driven by battery that is able to open and shut for 4 million times during battery lifetime.  CA568-G series assure you of continuously good metrology and revenue protection at the same time.With potted electronic part  sealed above on the metering chamber, away from the water, which makes the meter water proof and adaptable to humid and tropical environments.



The meter works with our Billing system station, the water meters can transmit the data via GPRS to the Billing station.

To top-up or recharge the water meter, a consumer just need to purchase 20 digits'  credit token from the vendor and punch in the code with the CIU. With our broad range of prepaid vending solutions, a utility or service provider can manage not only water meter but also STS prepaid electricity meters in one vending system.



Calinmeter has over 10 years experience in STS prepayment metering. We design, manufacture STS prepayment meters and OEM for other meter factories as well. Indonesia is our strategic long term market and our calin meter meets the national standard in Indonesia. There is no doubt that Calin is the right one you are not going to missing.





Features

a) DN15, 20, 25 up to DN100

b) Wireless LoRa technology

c) Split operation with an in home CIU

d) Up to 1 mile communication distance between meter and DCU(Data concentrator)

e) LCD and Counter register dual display

f) Potted electronics making meter water resistant in humid and tropical environments

g) Tamper and fraud proof

h) Low credit warning

i) Life time data retention in absence of power

j) Prepared for AMR / AMI functions (optional)





 Key benefits



1) Suitable for new reticulation and retrofittings

2) Multi-tariff and consumption record on Time of Use (TOU) basis

3) Auto-register with head-end sever system

4) Easy setting of free basic water, emergency credit, low credit warning, arrear policy

5) Supports drive-by reading and fully automated reading for AMI smart metering applications

6) Remote  valve control on / off

7) Reduced operational and inventory cost





Specifications:







Nominal size



Dn



mm

                in-line

15

20

25

Maximum flow rate

Q4

m3/h

3.125

5.0

7.875

Ratio “R”

    Q3/Q1



80

80

80

Permanent l flow rate

Q33





m3/h

2.5

4.0

6.3

Transitional flow rate

Q22

0.05

0.08

0.126

Minimum flow rate

Q11

0.031

0.05

0.0787

Minimum reading



m3

0.0005

Maximum reading

99999



Maximum Permission Error (MPE)

Q1≦Q≦,Q2    MPE =+ 5%           Q2≦Q≦Q4,    MPE= + 2% (For hot water metering, MPE=+ 3%)



Dimensions and diagram



Nominal size

Length

Width

Height

Thread

mm

D

15

165

101

124

G3/4B

20

195

101

124

G1B

25

225

101

124

G5/4B
